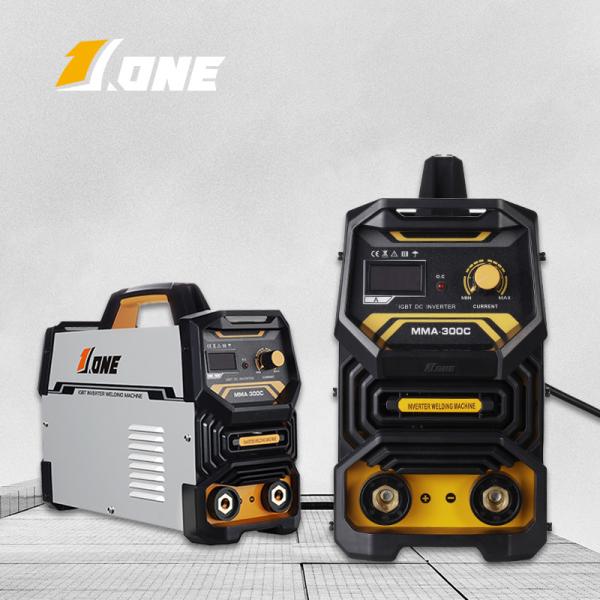

1PCB DC Inverter Arc MMA Welder

Product Categories

Dongguan Jone Welding Technology Co., Ltd.

Contact Now

1PCB DC Inverter Arc MMA Welder

Name: 1PCB DC Inverter Arc MMA Welder
Brand: JONE
Price: 1 USD

Brand Name : JONE

Model Number : MMA-200C 250C 300C

Certification : ISO9001,CE,CCC

Place of Origin : China

MOQ : 100PCS

Payment Terms : L/C, T/T, Western Union,, D/A, D/P

Supply Ability : 1 million pieces per year

Delivery Time : 30days

Packaging Details : 350*206*275kraft paper box

Price : Negotiate

Type : IGBT 1PCB

Real Amp(A) : 120A/140A/160A

Rated Input Power Capacity(KVA) : 5/6.2/7

Input power cable(m) : 1.8

Quick joint Size(mm) : 35-50mm

N.W./G.W.(kg) : 3.8/5.6

Machine Size(LxWxH mm) : 420*160*310

Package(LxWxH mm) : 452*212*325 kraft paper box

Contact Now

best high frequency DC inverter mma welding machine mma-200C energy saving Inverter ARC Welder

Description

We offer best inverter arc welding machine. This series features fast contact speed, low amperage consumption and high performance which can be used in all types of metal processing industries. It can be operated by anyone even if they are inexperienced. With its slim design, it has the perfect balance between portability and usability.

Features

simple adjustment for selection of welding current and suitable length of electrode
automatic compensation for voltage fluctuation

MMA inverter welder characteristics

This machine is completely waterproof and windproof, which means that it will not only last longer but also work in harsh conditions like rain or snow. The new closed-loop control circuit ensures that the arc is formed at a low splash level, which means less spatter on your job site.

Specifications

Model	MMA-200B	MMA-250B	MMA-300B
Type	IGBT 1PCB	IGBT 1PCB	IGBT 1PCB
Real Amp(A)	120	140	160
AC Input Voltage(V)	220V (110V/220V can do)	220V (110V/220V can do)	220V (110V/220V can do)
Rated Input Power Capacity(KVA)	5	6.2	7
Input Frequency(Hz)	50/60	50/60	50/60
Non-load Voltage(V)	56	56	56
Output current range(A)	20-200	20-250	20-300
Rated Duty Cycle(%)	60%	60%	60%
Efficiency(%)	85%	85%	85%
Class of Insulation	F	F	F
Protection class of case	IP21	IP21	IP21
Electrode diameter (mm)	1.6-3.2	1.6-3.2	1.6-4.0
Quick joint Size(mm)	35-50	35-50	35-50
Input power cable(m)	1.8	1.8	1.8
N.W./G.W.(kg)	3.8/5.6	4/5.8	4.2/6
Machine Size(LxWxH mm)	310137225	310137225	310137225
Package(LxWxH mm)	350206275 kraft paper box	350206275 kraft paper box	350206275 kraft paper box
Accessories	1.8m 16mm² 200A holder	1.8m 16mm² 200A holder	1.8m 16mm² 200A holder
	1.2m 16mm² 300A clamp	1.2m 16mm² 300A clamp	1.2m 16mm² 300A clamp
	mask,brush,belt,manual	mask,brush,belt,manual	mask,brush,belt,manual

Advantages Of Electric Welding Machine

Welders are used in production of electric welding machines. Welding is a special welding method to join different materials together and improve their ductility, resistance to corrosion and dimensional stability. The electric welders are widely used in the fields of wire drawing and electric fuel supply.

1PCB DC Inverter Arc MMA Welder

FAQ

Q:I have not heard of your company before, are you a new company?
A:Our company was established since 2001 by a team of members with welding machines exceptional knowledge and with over 20 years of experience in the welding machines Industry.

Q:Can I buy other factory's products directly from you?

A:Yes, of course. There are already many customers cooperating with us in this way. We have over 20 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.

Q:Do you offer any welding machines technical support?
A:Yes, we have engineers ready to assist customers with welding machines technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support.
